MAX4480 Datasheet - Maxim Integrated

MAX4480 Rail-to-Rail Op Amps

The MAX4480 *MAX4483 low-cost, general-purpose op amps offer rail-to-rail outputs, draw only 50μA of quiescent current, and operate from a single +2.5V to +5.5V supply. For additional power conservation, the MAX4481 offers a low-power shutdown mode that reduces supply current to 0.5μA (max) a.

MAX4480-MaximIntegrated.pdf

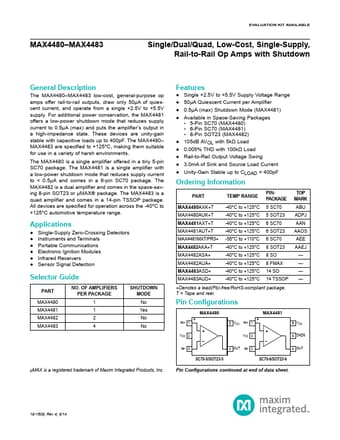

Preview of MAX4480 PDF
MAX4480 Datasheet Preview Page 2 MAX4480 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX4480

Manufacturer:

Maxim Integrated ↗

File Size:

551.04 KB

Description:

Rail-to-rail op amps.
