MAX4666 CMOS Analog Switches

MAX4666 Description

19-1504; Rev 0; 7/99 MAX4664/MAX4665/MAX4666 5Ω, Quad, SPST, CMOS Analog Switches General .
Features The MAX4664/MAX4665/MAX4666 quad analog switches feature 5Ω max on-resistance.

MAX4666 Features

* The MAX4664/MAX4665/MAX4666 quad analog switches feature 5Ω max on-resistance. On-resistance is matched between switches to 0.5Ω max and is flat (0.5Ω max) over the specified signal range. Each switch can handle Rail-to-Rail® analog signals. The off-leakage current is only 5nA max at +85°C. These a

MAX4666 Applications

* and are the preferred solution over mechanical relays in automatic test equipment or in applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays. The MAX4664 has four normally closed (NC) switches, the

📥 Download Datasheet

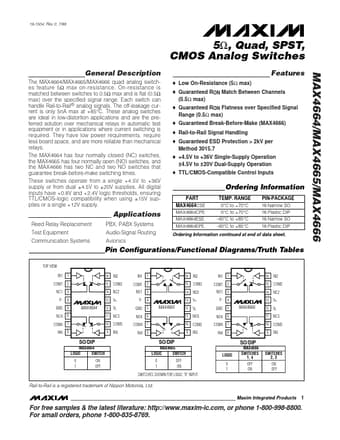

Preview of MAX4666 PDF
datasheet Preview Page 2 datasheet Preview Page 3
