MAX6194 - Low-Dropout Voltage References

This page provides the datasheet information for the MAX6194, a member of the MAX6190 Low-Dropout Voltage References family.

Datasheet Summary

Description

The MAX6190

MAX6195/MAX6198 precision, micropower, low-dropout voltage references offer high initial accuracy and very low temperature coefficient through a proprietary curvature-correction circuit and lasertrimmed precision thin-film resistors.

Features

  • ±2mV (max) Initial Accuracy.
  • 5ppm/°C (max) Temperature Coefficient.
  • 35µA (max) Supply Current.
  • 100mV Dropout at 500µA Load Current.
  • 0.12µV/µA Load Regulation.
  • 8µV/V Line Regulation.

📥 Download Datasheet

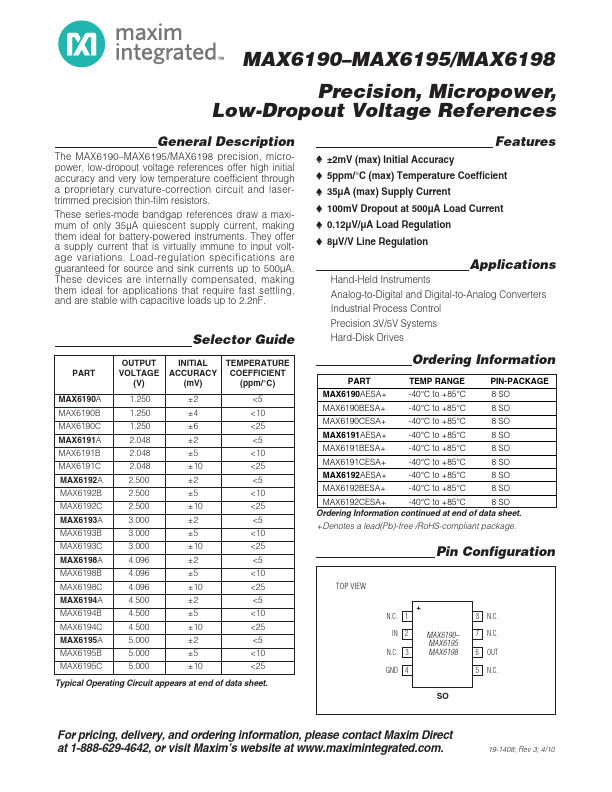

Datasheet preview – MAX6194

Datasheet Details

Part number MAX6194
Manufacturer Maxim Integrated
File Size 254.43 KB
Description Low-Dropout Voltage References
Datasheet download datasheet MAX6194 Datasheet

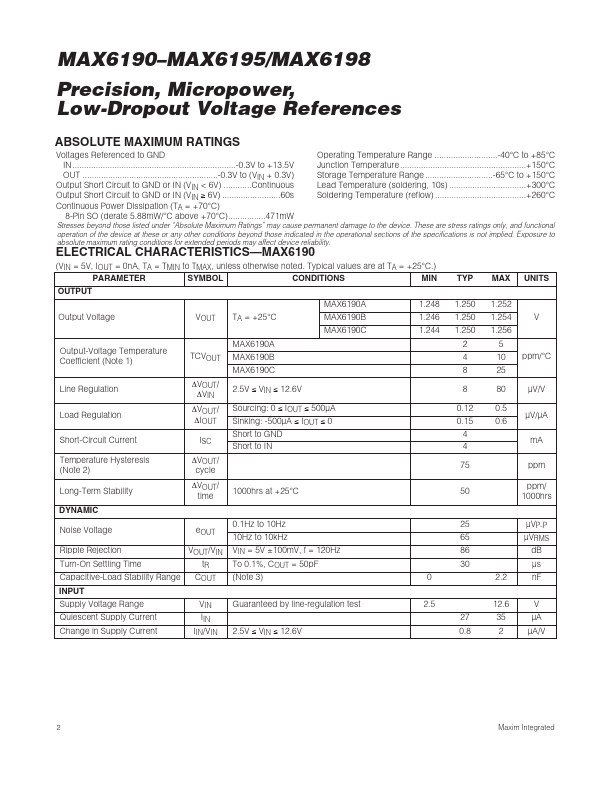

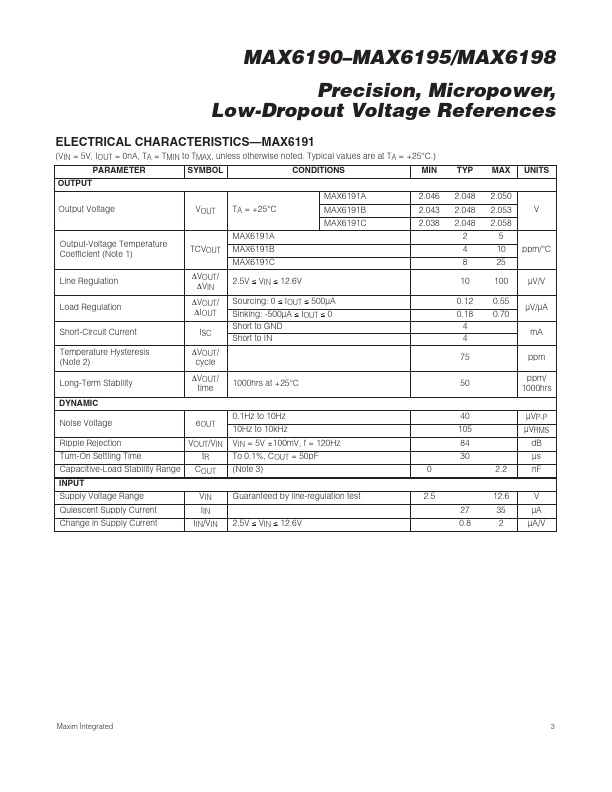

Additional preview pages of the MAX6194 datasheet.

📁 Similar Datasheet

  • MAX619 - Regulated 5V Charge-Pump DC-DC Converter (Maxim)
  • MAX613 - Dual-Slot PCMCIA Analog Power Controllers (Maxim)
  • MAX6133 - Low-Dropout Voltage Reference (Maxim Integrated Products)
  • MAX6138 - SC70 Shunt Voltage Reference (Maxim Integrated Products)
  • MAX6143 - High-Precision Voltage Reference (Maxim Integrated Products)
  • MAX6145 - 3-Terminal Voltage References (Maxim)
  • MAX6173 - High-Precision Voltage References (Maxim)
  • MAX6174 - High-Precision Voltage References (Maxim)
  • MAX6175 - High-Precision Voltage References (Maxim)
  • MAX6176 - High-Precision Voltage References (Maxim)
Other Datasheets by Maxim Integrated
  • MAX6190 - Low-Dropout Voltage References
  • MAX6191 - Low-Dropout Voltage References
  • MAX6192 - Low-Dropout Voltage References
  • MAX6193 - Low-Dropout Voltage References
  • MAX6195 - Low-Dropout Voltage References
  • MAX6198 - Low-Dropout Voltage References
  • MAX6100 - SOT23 Voltage References
  • MAX6101 - SOT23 Voltage References

Full PDF Text Transcription

Click to expand full text
MAX6190–MAX6195/MAX6198 Precision, Micropower, Low-Dropout Voltage References General Description The MAX6190–MAX6195/MAX6198 precision, micropower, low-dropout voltage references offer high initial accuracy and very low temperature coefficient through a proprietary curvature-correction circuit and lasertrimmed precision thin-film resistors. These series-mode bandgap references draw a maximum of only 35µA quiescent supply current, making them ideal for battery-powered instruments. They offer a supply current that is virtually immune to input voltage variations. Load-regulation specifications are guaranteed for source and sink currents up to 500µA.
