MAX6195 - Low-Dropout Voltage References

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX6195
Manufacturer	Maxim Integrated
File Size	254.43 KB
Description	Low-Dropout Voltage References
Datasheet	MAX6195 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX6195, MAX6190. Please refer to the document for exact specifications by model.

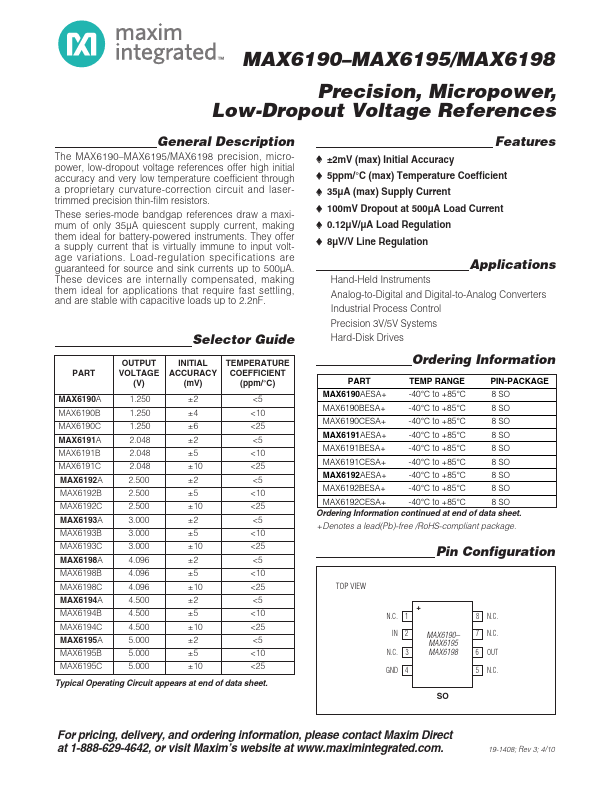

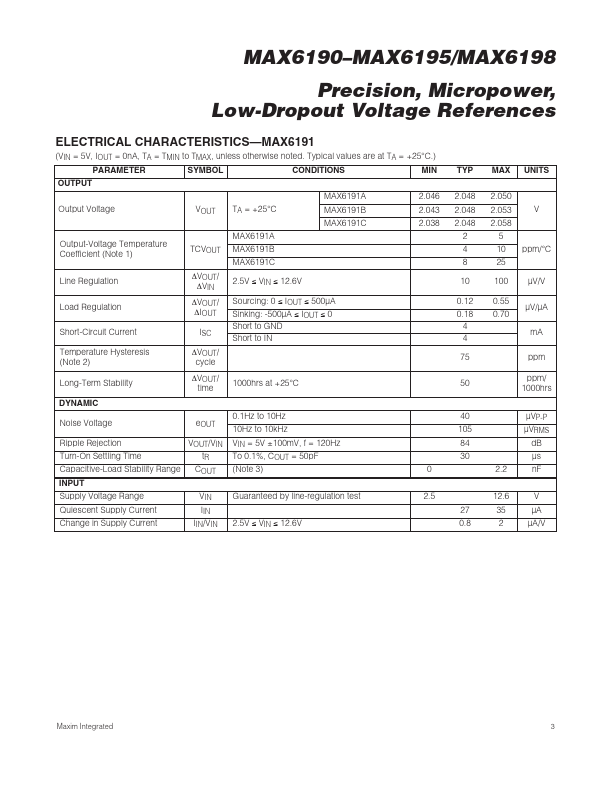

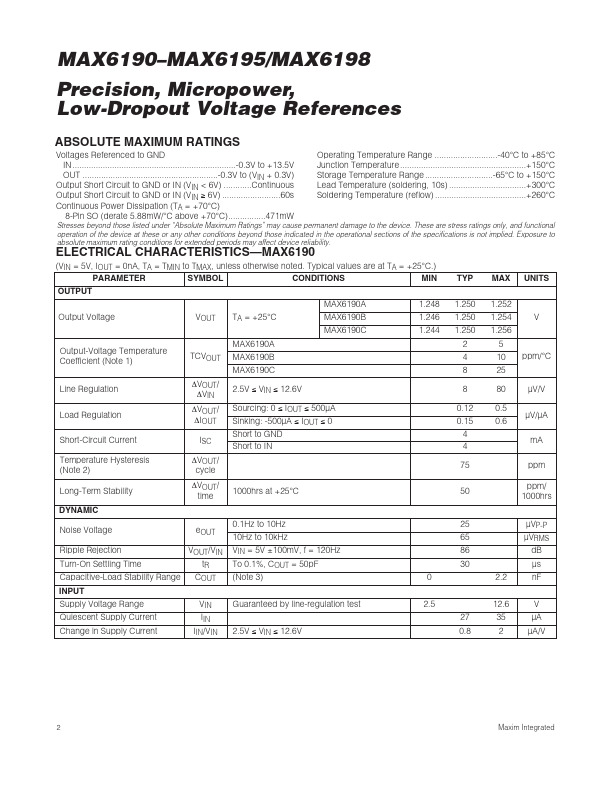

Additional preview pages of the MAX6195 datasheet.

Product details

Description

The MAX6190 MAX6195/MAX6198 precision, micropower, low-dropout voltage references offer high initial accuracy and very low temperature coefficient through a proprietary curvature-correction circuit and lasertrimmed precision thin-film resistors.

Features

±2mV (max) Initial Accuracy.
5ppm/°C (max) Temperature Coefficient.
35µA (max) Supply Current.
100mV Dropout at 500µA Load Current.
0.12µV/µA Load Regulation.
8µV/V Line Regulation.
