MAX8864T

120mA Linear Regulators

MAX8864T Features

* include low-power shutdown, short-circuit protection, thermal shutdown protection, and reverse battery protection. The MAX8864 also includes an auto-discharge function, which actively discharges the output voltage to ground when the device is placed in shutdown mode. Both devices come in a miniature

MAX8864T General Description

The MAX8863T/S/R and MAX8864T/S/R low-dropout linear regulators operate from a +2.5V to +6.5V input range and deliver up to 120mA. A PMOS pass transistor allows the low, 80μA supply current to remain independent of load, making these devices ideal for battery-operated portable equipment such as cell.

MAX8864T Datasheet (1.90 MB)

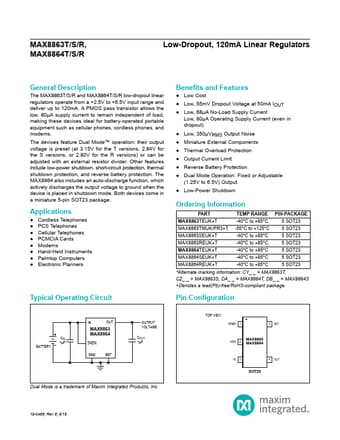

Preview of MAX8864T PDF

Datasheet Details

Part number:

MAX8864T

Manufacturer:

Maxim Integrated ↗

File Size:

1.90 MB

Description:

120ma linear regulators.
