MAX9010 - Precision TTL Comparators

Maxim Integrated

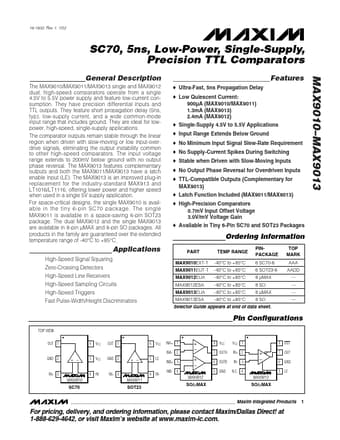

MAX9010 Datasheet Preview — Preview of MAX9010 PDF

Datasheet Details

Part number	MAX9010
Manufacturer	Maxim Integrated ↗
File Size	330.45 KB
Description	Precision TTL Comparators
Datasheet	MAX9010-MaximIntegrated.pdf

MAX9010 Product details

Description

The MAX9010/MAX9011/MAX9013 single and MAX9012 dual, high-speed comparators operate from a single 4.5V to 5.5V power supply and feature low-current consumption.

Features

complementary outputs and both the MAX9011/MAX9013 have a latch enable input (LE). The MAX9013 is an improved plug-in replacement for the industry-standard MAX913 and LT1016/LT1116, offering lower power and higher speed when used in a single 5V supply.
