MAX9020 - nanoPower Comparators

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX9020
Manufacturer	Maxim Integrated
File Size	3.29 MB
Description	nanoPower Comparators
Datasheet	MAX9020 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX9020, MAX9015. Please refer to the document for exact specifications by model.

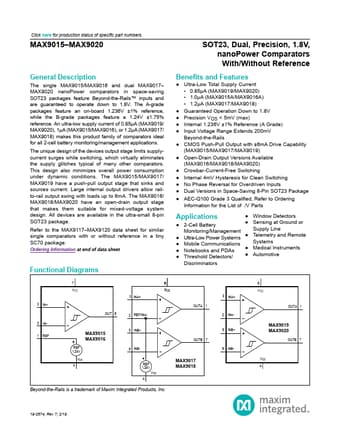

Additional preview pages of the MAX9020 datasheet.

Product details

Description

The single MAX9015/MAX9016 and dual MAX9017 MAX9020 nanoPower comparators in space-saving SOT23 packages feature Beyond-the-Rails™ inputs and are guaranteed to operate down to 1.8V.

Features

Ultra-Low Total Supply Current.
0.85μA (MAX9019/MAX9020).
1.0μA (MAX9015A/MAX9016A).
1.2μA (MAX9017/MAX9018).
Guaranteed Operation Down to 1.8V.
Precision VOS < 5mV (max).
Internal 1.236V ±1% Reference (A Grade).
Input Voltage Range Extends 200mV Beyond-the-Rails.
CMOS Push-Pull Output with ±6mA Drive Capability (MAX9015/MAX9017/MAX9019).
Open-Drain Output Versions Available (MAX9016/MAX9018/MAX9020.
