MAX9264, MAX9263 Datasheet - Maxim Integrated

MAX9264 HDCP Gigabit Multimedia Serial Link Serializer/Deserializer

The MAX9263/MAX9264 chipset extends Maxim’s gigabit multimedia serial link (GMSL) technology to include highbandwidth digital content protection (HDCP) encryption of video and audio data. The MAX9263 serializer, or any HDCP-GMSL serializer, pairs with the MAX9264 deserializer, or any HDCP-GMSL deser.

MAX9264 Features

* S Ideal for HDCP Video Applications Supports Up to XGA (1280 x 768) or Dual-View WVGA (2x 854 x 480) Pre/Deemphasis and Equalization Allows 15m Cable at Full Speed Up to 192kHz, 32-Bit/Sample I2S S Multiple Data Rates for System Flexibility Up to 3.12Gbps Serial-Bit Rate 6.25MHz to 1

MAX9263-MaximIntegrated.pdf

This datasheet PDF includes multiple part numbers: MAX9264, MAX9263. Please refer to the document for exact specifications by model.

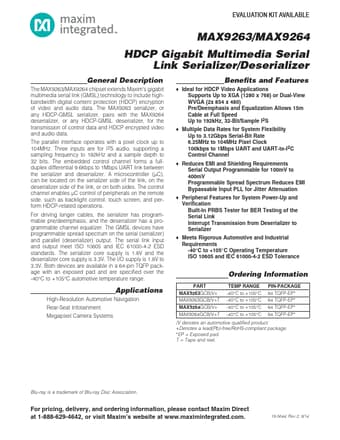

MAX9264 Datasheet Preview Page 2 MAX9264 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX9264, MAX9263

Manufacturer:

Maxim Integrated ↗

File Size:

630.12 KB

Description:

Hdcp gigabit multimedia serial link serializer/deserializer.

Note:

This datasheet PDF includes multiple part numbers: MAX9264, MAX9263.
Please refer to the document for exact specifications by model.
