DG506A Datasheet, Multiplexers, Maxim

DG506A Features

  • Multiplexers S Improved 2nd Source S Pin Compatible with Harris, Siliconix, Intersil S Operable with ±4.5V to ±18V Supplies S Symmetrical, Bidirectional Operation S Logic and Enable Inputs, TTL

PDF File Details

Part number:

DG506A

Manufacturer:

Maxim

File Size:

274.56kb

Download:

📄 Datasheet

Description:

Monolithic cmos analog multiplexers. Maxim’s DG506A/DG507A are monolithic CMOS analog multiplexers. The DG506A is a single 16-channel (1 of 16) multiplexer and the DG507A

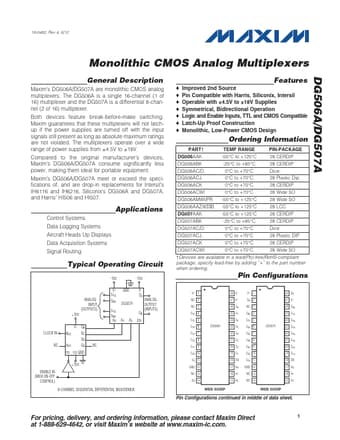

Datasheet Preview: DG506A 📥 Download PDF (274.56kb)
Page 2 of DG506A Page 3 of DG506A

DG506A Application

  • Applications Control Systems Data Logging Systems Aircraft Heads Up Displays Data Acquisition Systems Signal Routing Typical Operating Circuit -15
