DG508A

Monolithic CMOS Analog Multiplexers

DG508A Features

* Improved Second Source

* Operate from ±4.5V to ±18V Supplies

* Symmetrical, Bidirectional Operation

* Logic and Enable Inputs, TTL and CMOS Compatible

* Latchup-Proof Construction

* Monolithic, Low-Power CMOS Design Ordering Information PART TEMP

DG508A General Description

Maxim’s DG508A and DG509A are monolithic CMOS analog multiplexers (muxes): the DG508A is a single 8-channel (1-of-8) mux, and the DG509A is a differential 4-channel (2-of-8) mux. Both devices guarantee break-before-make switching. Maxim guarantees these muxes will not latch up if the power supplies .

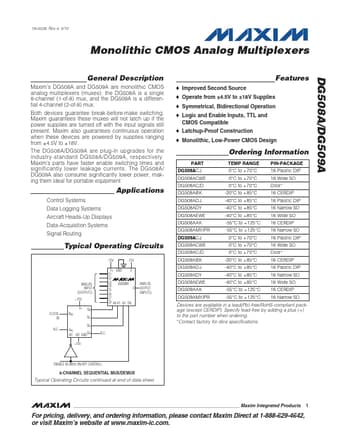

DG508A Datasheet (121.07 KB)

Preview of DG508A PDF

Datasheet Details

Part number:

DG508A

Manufacturer:

Maxim

File Size:

121.07 KB

Description:

Monolithic cmos analog multiplexers.
