DS3508

8-Channel Gamma Buffer

DS3508 Features

* DS3508 Applications TFT-LCD Gamma Buffer Industrial Controls PART DS3508E+ Ordering Information TEMP RANGE -45°C to +95°C PIN-PACKAGE 20 TSSOP 20 TSSOP DS3508E+T&R -45°C to +95°C +Denotes a lead-free package. T&R = Tape and reel. Typical Operating Circuit TOP VIEW SCL 15.0V 5.0V VCC VDD VHH VHM

DS3508 General Description

The DS3508 is a programmable 8-channel gamma voltage generator with one byte of on-chip EEPROM and one byte of SRAM memory per channel. Each channel is composed of an independent 8-bit DAC with an associated EEPROM/SRAM pair. At power-up, nonvolatile (NV) EEPROM gamma data is loaded into its corresp.

DS3508 Datasheet (219.33 KB)

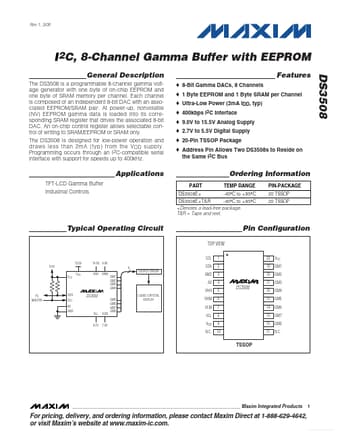

Preview of DS3508 PDF

Datasheet Details

Part number:

DS3508

Manufacturer:

Maxim

File Size:

219.33 KB

Description:

8-channel gamma buffer.
