MAX1043 - (MAX1021 / MAX1043) Multichannel ADCs/DACs

Product Overview

Maxim

Datasheet Details

Part number	MAX1043
Manufacturer	Maxim
File Size	626.03 KB
Description	(MAX1021 / MAX1043) Multichannel ADCs/DACs
Datasheet	MAX1043 Datasheet

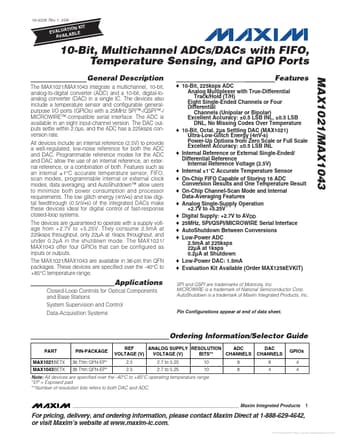

Additional preview pages of the MAX1043 datasheet.

Product details

Description

The MAX1021/MAX1043 integrate a multichannel, 10-bit, analog-to-digital converter (ADC) and a 10-bit, digital-toanalog converter (DAC) in a single IC.

Features

such as an internal ±1°C accurate temperature sensor, FIFO, scan modes, programmable internal or external clock modes, data averaging, and AutoShutdown™ allow users to minimize both power consumption and processor requirements. The low glitch energy (4nV.
s) and low digital feedthrough (0.5nV.
s) of the integrated DACs make these devices ideal for digital control of fast-response closed-loop systems. The devices are guaranteed to operate with a supply voltage from +2.7V to +5.25V.
