MAX1113

+5V / Low-Power / Multi-Channel / Serial 8-Bit ADCs

MAX1113 Features

* o +4.5V to +5.5V Single Supply o Low Power: 135µA at 50ksps 13µA at 1ksps o 8-Channel Single-Ended or 4-Channel Differential Inputs (MAX1112) o 4-Channel Single-Ended or 2-Channel Differential Inputs (MAX1113) o Internal Track/Hold; 50kHz Sampling Rate o Internal 4.096V Reference o SPI/QSPI/MICROWIR

MAX1113 Datasheet (359.64 KB)

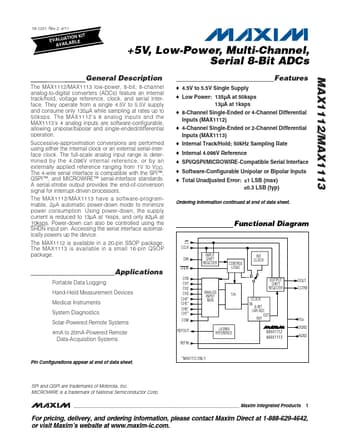

Preview of MAX1113 PDF

Datasheet Details

Part number:

MAX1113

Manufacturer:

Maxim

File Size:

359.64 KB

Description:

+5v / low-power / multi-channel / serial 8-bit adcs.
