MAX1308, MAX 8-/4-/2-Channel / 12-Bit / Simultaneous-Sampling ADCs

MAX1308 Description

19-3052; Rev 3; 8/04 8-/4-/2-Channel, 12-Bit, Simultaneous-Sampling ADCs with ±10V, ±5V, and 0 to +5V Analog Input Ranges General .
The MAX1304. MAX1306/MAX1308. MAX1310/MAX1312. MAX1314 12-bit, analog-to-digital converters (ADCs) offer eight, four, or two ind.

MAX1308 Features

* include a 20MHz T/H input bandwidth, internal clock, internal (+2.5V) or external (+2.0V to +3.0V) reference, and power-saving modes. A 20MHz, 12-bit, bidirectional parallel data bus provides the conversion results and accepts digital inputs that activate each channel individually. All devices opera

MAX1308 Applications

* SIN/COS Position Encoder Multiphase Motor Control Multiphase Power Monitoring Power-Grid Synchronization Power-Factor Monitoring Vibration and Waveform Analysis Selector Guide PART MAX1304ECM MAX1305ECM MAX1306ECM MAX1308ECM MAX1309ECM MAX1310ECM MAX1312ECM MAX1313ECM MAX1314ECM INPUT RANGE (V) 0 t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX1308, MAX. Please refer to the document for exact specifications by model.

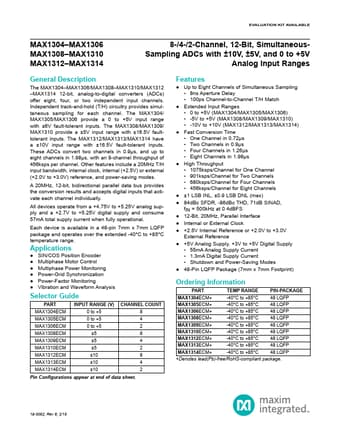

datasheet Preview Page 2 datasheet Preview Page 3
