MAX1615 - Low-Power Linear Regulators

Name: MAX1615
SKU: MAX1615-447586

Maxim

📥 Download Datasheet

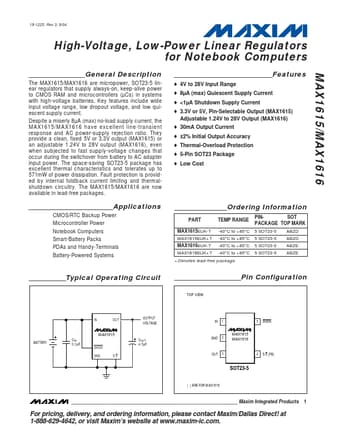

MAX1615 Datasheet Preview — Preview of MAX1615 PDF

Datasheet Details

Part number	MAX1615
Manufacturer	Maxim
File Size	99.85 KB
Description	Low-Power Linear Regulators
Datasheet	MAX1615_MaximIntegratedProducts.pdf

MAX1615 Product details

Description

The MAX1615/MAX1616 are micropower, SOT23-5 linear regulators that supply always-on, keep-alive power to CMOS RAM and microcontrollers (µCs) in systems with high-voltage batteries.

Features

include wide input voltage range, low dropout voltage, and low quiescent supply current. Despite a miserly 8µA (max) no-load supply current, the MAX1615/MAX1616 have excellent line-transient response and AC power-supply rejection ratio. They provide a clean, fixed 5V or 3.3V output (MAX1615) or an adjustable 1.24V to 28V output (MAX1616), even when subjected to fast supply-voltage changes that occur during the switchover from battery to AC adapter input power. The space-saving SOT23-5 package ha.
