MAX1760

Step-Up DC-DC Converter

Maxim

MAX1760 Features

* o Up to 94% Efficiency o 0.7V to 5.5V Input Range o Up to 800mA Output o Fixed 3.3V Output (or adj from 2.5V to 5.5V) o PWM Synchronous Rectified Topology o Low-Noise, Constant Frequency Operation (1MHz) o 0.1µA Logic-Controlled Shutdown o Synchronizable Switching Frequency o Adjustable Current Limi

MAX1760 General Description

The MAX1760 is a high-efficiency, low-noise, step-up DC-DC converter intended for use in battery-powered wireless applications. It maintains exceptionally low quiescent supply current (100µA) despite its high 1MHz operating frequency. Small external components and a tiny 10-pin µMAX package make thi.

MAX1760 Datasheet (488.46 KB)

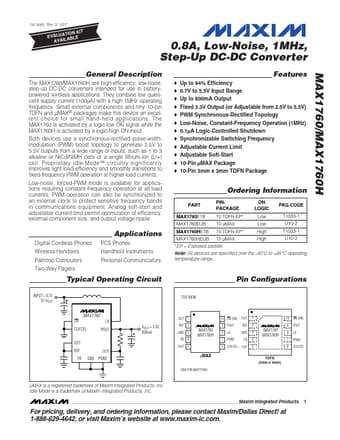

MAX1760 Datasheet Preview — Preview of MAX1760 PDF

Datasheet Details

Part number:

MAX1760

Manufacturer:

Maxim

File Size:

488.46 KB

Description:

Step-up dc-dc converter.
