MAX1811 - USB-Powered Li+ Charger

Datasheet Summary

Description

The MAX1811 is a single-cell lithium-ion (Li+) battery charger that can be powered directly from a USB port

or from an external supply up to 6.5V.

It has a 0.5% overall battery regulation voltage accuracy to allow maximum utilization of the battery capacity.

Features

  • include continuous monitoring of voltage and current and initial checking for fault conditions before charging. The MAX1811 is available in a small 1.4W thermally enhanced 8-pin SO package.

📥 Download Datasheet

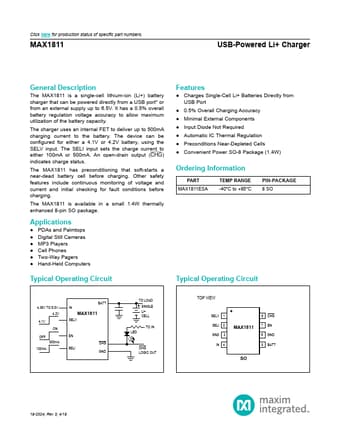

Datasheet preview – MAX1811

Datasheet Details

Part number MAX1811
Manufacturer Maxim
File Size 1.11 MB
Description USB-Powered Li+ Charger
Datasheet download datasheet MAX1811 Datasheet
