MAX2411

Low-Cost RF Up/Downconverter with LNA and PA Driver

Maxim

MAX2411 Features

* o Low-Cost Silicon Bipolar Design o Integrated Upconvert/Downconvert Function o Operates from a Single +2.7V to +5.5V Supply o 3.2dB Combined Receiver Noise Figure: 2.4dB (LNA) 9.2dB (mixer) o Flexible Power-Amplifier Driver: 18dBm Output Third-Order Intercept (OIP3) 35dB Gain-Control Range o LO Buf

MAX2411 General Description

The MAX2411A performs the RF front-end transmit/ receive function in time-division-duplex (TDD) communication systems. It operates over a wide frequency range and is optimized for RF frequencies around 1.9GHz. Applications include most popular cordless and PCS standards. The MAX2411A includes a low-.

MAX2411 Datasheet (134.88 KB)

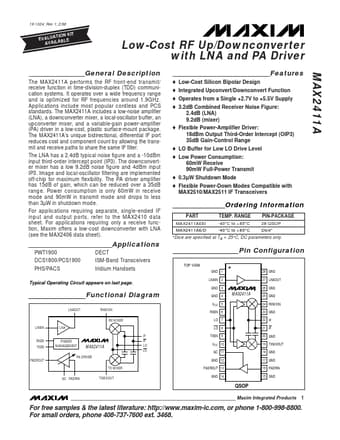

MAX2411 Datasheet Preview — Preview of MAX2411 PDF

Datasheet Details

Part number:

MAX2411

Manufacturer:

Maxim

File Size:

134.88 KB

Description:

Low-cost rf up/downconverter with lna and pa driver.
