MAX312 - 10 / Quad / SPST / CMOS Analog Switches

Product Overview

Maxim

📥 Download Datasheet

MAX312 10 / Quad / SPST / CMOS Analog Switches by Maxim - Datasheet Preview — Datasheet preview – MAX312

Datasheet Details

Part number	MAX312
Manufacturer	Maxim
File Size	406.10 KB
Description	10 / Quad / SPST / CMOS Analog Switches
Datasheet	MAX312 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX312, MAX. Please refer to the document for exact specifications by model.

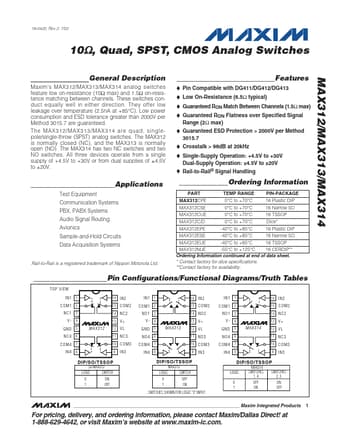

Additional preview pages of the MAX312 datasheet.

Product details

Description

Maxim’s MAX312/MAX313/MAX314 analog switches feature low on-resistance (10Ω max) and 1.5Ω on-resistance matching between channels.

Features

o Pin Compatible with DG411/DG412/DG413 o Low On-Resistance (6.5Ω typical) o Guaranteed RON Match Between Channels (1.5Ω max) o Guaranteed RON Flatness over Specified Signal Range (2Ω max) o Guaranteed ESD Protection > 2000V per Method 3015.7 o Crosstalk > 96dB at 20kHz o Single-Supply Operation: +4.5V to +30V Dual-Supply Operation: ±4.5V to ±20V o Rail-to-Rail Signal Handling MAX312/MAX313/MAX314 ________________________.
