MAX3130, 3V to 5.5V / IrDA Infrared Transceiver with Integrated RS-232 Interface

19-1402; Rev 0; 11/98 3V to 5.5V, IrDA Infrared Transceiver with Integrated RS-232 Interface General .
The MAX3130/MAX3131 combine an IrDA 1. all in a single 3V-powered hybrid microcircui.

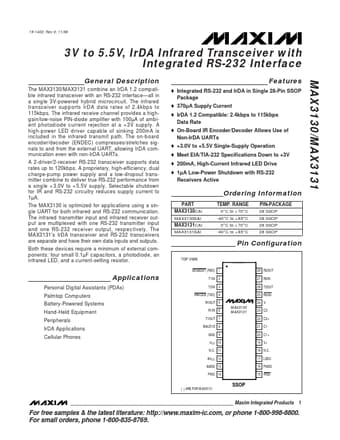

datasheet Preview Page 1 from Datasheet4u.com

MAX3130_MaximIntegratedProducts.pdf

MAX3130 Datasheet Preview — Preview of MAX3130 PDF

Datasheet Details

Part number:

MAX3130

Manufacturer:

Maxim

File Size:

220.03 KB

Description:

3V to 5.5V / IrDA Infrared Transceiver with Integrated RS-232 Interface

Features

* o Integrated RS-232 and IrDA in Single 28-Pin SSOP Package o 370µA Supply Current o IrDA 1.2 Compatible: 2.4kbps to 115kbps Data Rate o On-Board IR Encoder/Decoder Allows Use of Non-IrDA UARTs o +3.0V to +5.5V Single-Supply Operation o Meet EIA/TIA-232 Specifications Down to +3V o 200mA, High-Curren

Applications

* using a single UART for both infrared and RS-232 communication. The infrared transmitter input and infrared receiver output are multiplexed with one RS-232 transmitter input and one RS-232 receiver output, respectively. The MAX3131’s IrDA transceiver and RS-232 transceivers are separate and have the
