MAX3185 - RS-232 Serial Port

MAX3185 Description

19-1076; Rev 0; 9/96 ±15kV ESD-Protected, EMC-Compliant, 230kbps RS-232 Serial Port for Motherboards/Desktop PCs _______________General .
The MAX3185 is a complete DTE RS-232 serial port designed to meet the stringent ESD requirements of the European community.

MAX3185 Features

* o Enhanced ESD Protection: ±15kV
* Human Body Model ±8kV
* IEC1000-4-2, Contact Discharge ±15kV
* IEC1000-4-2, Air-Gap Discharge o Latchup Free During an ESD Event o 20-Pin SSOP and SO Packages o Guaranteed 230kbps Data Rate o Flow-Through Pinout o Pin Compatible with SN75C185 o Co

MAX3185 Applications

* It is guaranteed to run at data rates up to 230kbps, providing compatibility with popular software for communicating with personal computers. Power-supply current is less than 300µA for IDD and ISS, and less than 1mA for ICC. The MAX3185 is pin and functionally compatible with the industry-standard

📥 Download Datasheet

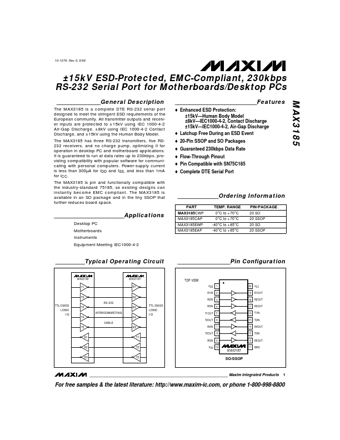

Preview of MAX3185 PDF
datasheet Preview Page 2 datasheet Preview Page 3
