MAX322 Datasheet, Switches, Maxim

MAX322 Features

• Switches o Low On-Resistance, 35Ω max (16Ω typical) o RON Matching Between Channels <2Ω o RON Flatness <4Ω o Guaranteed Charge Injection <5pC o Bipolar Supply Operation (±3V to ±8V) o Low Power

PDF File Details

Part number:

MAX322

Manufacturer:

Maxim

File Size:

109.96kb

Download:

📄 Datasheet

Description:

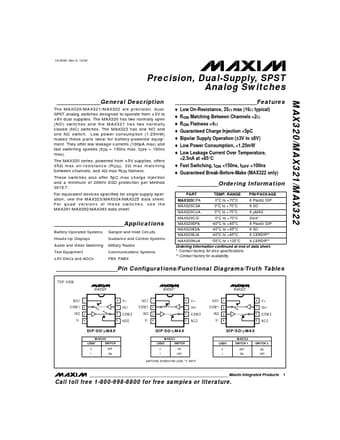

Precision / dual-supply / spst analog switches. The MAX320/MAX321/MAX322 are precision, dual, SPST analog switches designed to operate from ±3V to ±8V dual supplies. The MAX320 has

MAX322 Application

• Applications Battery-Operated Systems Heads-Up Displays Audio and Video Switching Test Equipment ±5V DACs and ADCs Sample-and-Hold Circuits Guidance
