MAX3867 - +3.3V / 2.5Gbps SDH/SONET Laser Driver with Automatic Power Control

MAX3867 Description

19-4769; Rev 0a; 9/98 KIT ATION EVALU E L B AVAILA +3.3V, 2.5Gbps SDH/SONET Laser Driver with Automatic Power Control General .
Features o Single +3.

MAX3867 Features

* o Single +3.3V or +5V Power Supply o 62mA Supply Current at +3.3V o Programmable Modulation Current from 5mA to 60mA o Programmable Bias Current from 1mA to 100mA o Rise/Fall Time < 90ps o Automatic Average Power Control with Failure Monitor o Complies with ANSI, ITU, and Bellcore SDH/SONET Specific

MAX3867 Applications

* up to 2.5Gbps. The device accepts differential PECL data and clock inputs and provides bias and modulation currents for driving a laser. The synchronizing input latch can be bypassed if a clock signal is not available. An automatic power control (APC) feedback loop is incorporated to maintain a cons

📥 Download Datasheet

Preview of MAX3867 PDF

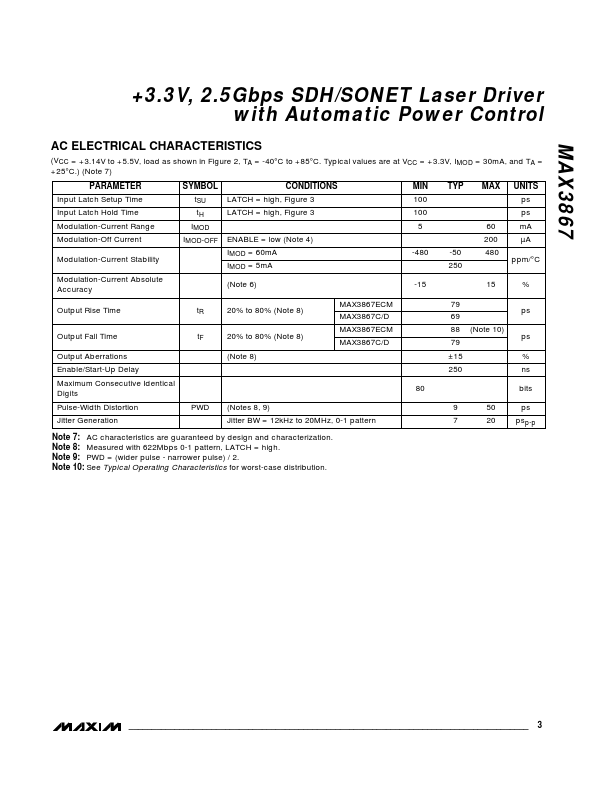

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX3867
Manufacturer
Maxim
File Size
193.71 KB
Datasheet
MAX3867_MaximIntegratedProducts.pdf
Description
+3.3V / 2.5Gbps SDH/SONET Laser Driver with Automatic Power Control
