MAX4074 Micropower / SOT23 / Rail-to-Rail / Fixed-Gain / GainAmp/Open-Loop Op Amps

The MAX4074 *MAX4078 GainAmp™ op amp family combines low-cost Rail-to-Rail® op amps with precision internal gain-setting resistors. Factory-trimmed on-chip resistors decrease design size, cost, and layout, and provide 0.1% gain accuracy. Fixed inverting gains from -0.25V/V to -100V/V or nonin.

MAX4074 Features

* o Internal Gain-Setting Resistors in SOT23 Packages (MAX4074) o 0.1% Gain Accuracy (RF/RG) (MAX4074/75) o 54 Standard Gains Available (MAX4074/75) o Open-Loop, Unity-Gain-Stable Op Amps (MAX4076/77/78) o Rail-to-Rail Outputs Drive 1kΩ Load (MAX4074/75) o +2.5V to +5.5V Single Supply o 34µA Supply Cu

MAX-4074.pdf

This datasheet PDF includes multiple part numbers: MAX4074, MAX. Please refer to the document for exact specifications by model.

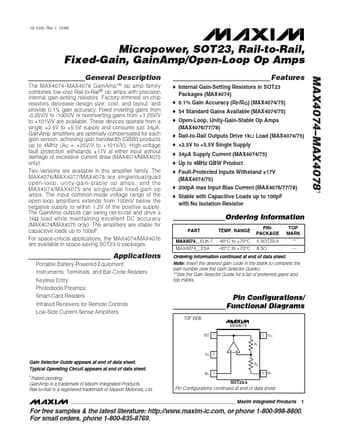

MAX4074 Datasheet Preview Page 2 MAX4074 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX4074, MAX

Manufacturer:

Maxim

File Size:

412.93 KB

Description:

Micropower / sot23 / rail-to-rail / fixed-gain / gainamp/open-loop op amps.

Note:

This datasheet PDF includes multiple part numbers: MAX4074, MAX.
Please refer to the document for exact specifications by model.
