MAX4358 - 32 x 16 Nonblocking Video Crosspoint Switch with On-Screen Display Insertion and I/O Buffers

Datasheet Summary

Description

The MAX4358 is a 32 ✕ 16 highly integrated video crosspoint switch matrix with input and output buffers and On-Screen Display (OSD) Insertion.

This device operates from dual ±3V to ±5V supplies or from a single +5V supply.

Digital logic is supplied from an independent single +2.7V to +5.5V supply.

Features

  • o 32 ✕ 16 Nonblocking Matrix with Buffered Inputs and Outputs o Operates from a ±3V, ±5V, or +5V Supply o Fast Switching (40ns) 2:1 OSD Insertion Mux o Each Output Individually Addressable o Individually Programmable Output Buffer Gain (AV = +1V/V or +2V/V) o High-Impedance Output Disable for Wired-OR Connections o 0.1dB Gain Flatness to 12MHz o Minimum -62dB Crosstalk, -110dB Isolation at 6MHz o 0.05%/0.1° Differential Gain/Differential Phase Error o Low 195mW Power Consumption (0.38mW per poin.

📥 Download Datasheet

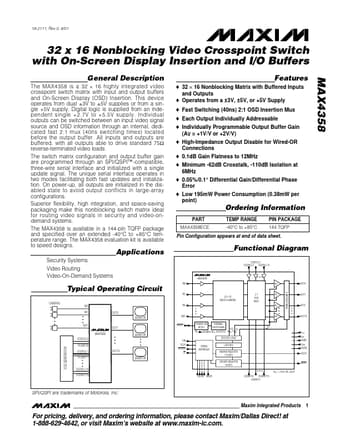

Datasheet preview – MAX4358

Datasheet Details

Part number MAX4358
Manufacturer Maxim
File Size 0.98 MB
Description 32 x 16 Nonblocking Video Crosspoint Switch with On-Screen Display Insertion and I/O Buffers
Datasheet download datasheet MAX4358 Datasheet
Additional preview pages of the MAX4358 datasheet.

📁 Similar Datasheet

  • MAX4353 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4354 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4355 - 16x16 Nonblocking Video Crosspoint Switch (Maxim Integrated Products)
  • MAX4357 - 32 X 16 Nonblocking Video Crosspoint Switch (Maxim Integrated Products)
  • MAX4308 - Ultra-Low-Distortion Op Amps (Maxim Integrated)
  • MAX4309 - Ultra-Low-Distortion Op Amps (Maxim Integrated)
  • MAX4310 - Video Multiplexer-Amplifiers (Maxim Integrated)
  • MAX4311 - Video Multiplexer-Amplifiers (Maxim Integrated)
  • MAX4312 - Video Multiplexer-Amplifiers (Maxim Integrated)
  • MAX4313 - Video Multiplexer-Amplifiers (Maxim Integrated)
Other Datasheets by Maxim
  • MAX435 - Wideband Trasconductance Amplifiers
  • MAX4352 - Single-Supply Op Amps
  • MAX4359 - Video Crosspoint Switches
  • MAX430 - 15V Chopper-Stabilized Operational Amplifier
  • MAX4304 - Op Amps
  • MAX4305 - Op Amps
  • MAX4321 - Low-Cost / Low-Voltage / Rail-to-Rail / Input/Output / SOT23 5MHz Op Amp
  • MAX4322 - Single/Dual/Quad / Low-Cost / SOT23 / Low-Power / Rail-to-Rail I/O Op Amps

Full PDF Text Transcription

Click to expand full text
19-2111; Rev 0; 8/01 32 x 16 Nonblocking Video Crosspoint Switch with On-Screen Display Insertion and I/O Buffers General Description The MAX4358 is a 32 ✕ 16 highly integrated video crosspoint switch matrix with input and output buffers and On-Screen Display (OSD) Insertion. This device operates from dual ±3V to ±5V supplies or from a single +5V supply. Digital logic is supplied from an independent single +2.7V to +5.5V supply. Individual outputs can be switched between an input video signal source and OSD information through an internal, dedicated fast 2:1 mux (40ns switching times) located before the output buffer. All inputs and outputs are buffered, with all outputs able to drive standard 75Ω reverse-terminated video loads.
