MAX4359

Video Crosspoint Switches

MAX4359 Features

* o Eight (MAX4456) or Four (MAX4359/MAX4360) Internal Buffers 250V/µs Slew Rate Three-State Output Capability Power-Saving Disable Feature 65MHz -3dB Bandwidth o Routes Any Input Channel to Any Output Channel o Serial or Parallel Digital Interface o Expandable for Larger Switch Matrices o 80dB All-Ch

MAX4359 General Description

The MAX4359/MAX4360/MAX4456 low-cost video crosspoint switches are designed to reduce component count, board space, design time, and system cost. Each contains a matrix of T-switches that connect any of their four (MAX4359) or eight (MAX4360/MAX4456) video inputs to any of their buffered outputs, in.

MAX4359 Datasheet (435.35 KB)

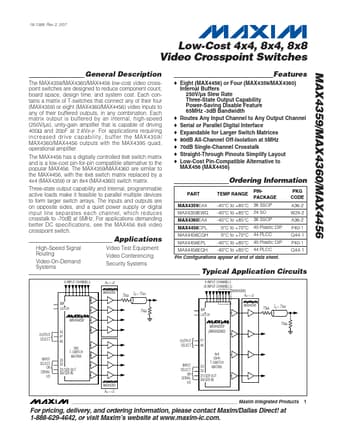

Preview of MAX4359 PDF

Datasheet Details

Part number:

MAX4359

Manufacturer:

Maxim

File Size:

435.35 KB

Description:

Video crosspoint switches.
