MAX4372T, Low-Cost / SOT23 / Micropower / High-Side Current-Sense Amplifier

19-1548; Rev 0; 10/99 Low-Cost, SOT23, Micropower, High-Side Current-Sense Amplifier with Voltage Output General .
The MAX4372 low-cost, precision, high-side currentsense amplifier is available in a tiny, space-saving SOT23-5 package.

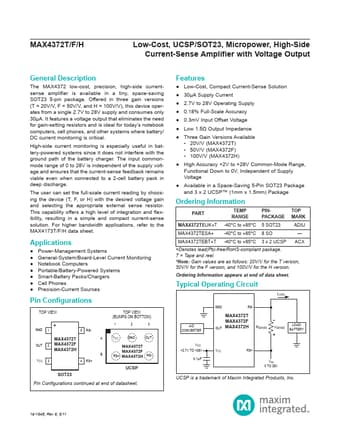

datasheet Preview Page 1 from Datasheet4u.com

MAX4372T_MaximIntegratedProducts.pdf

MAX4372T Datasheet Preview — Preview of MAX4372T PDF

Datasheet Details

Part number:

MAX4372T

Manufacturer:

Maxim

File Size:

500.87 KB

Description:

Low-Cost / SOT23 / Micropower / High-Side Current-Sense Amplifier

Features

* a voltage output that eliminates the need for gain-setting resistors and is ideal for today’s notebook computers, cell phones, and other systems where battery/DC current monitoring is critical. High-side current monitoring is especially useful in battery-powered systems since it does not interfere w

Applications

* refer to the MAX4173T/F/H data sheet. o 30µA Supply Current o +2.7V to +28V Operating Supply o 0.18% Full-Scale Accuracy o Low 1.5Ω Output Impedance o Three Gain Versions Available +20V/V (MAX4372T) +50V/V (MAX4372F) +100V/V (MAX4372H) o Wide 0 to +28V Common-Mode Range, Independent of Supply Volta
