MAX4385E

Low-Cost / 230MHz / Single/Quad Op Amps

MAX4385E Features

* o ESD-Protected Inputs and Outputs ±15kV

* Human Body Model ±8kV

* IEC 1000-4-2 Contact Discharge ±15kV

* IEC 1000-4-2 Air-Gap Discharge o Low Cost and High Speed 230MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness 450V/µs Slew Rate o Rail-to-Rail Outputs o Input Common-Mode Range Exte

MAX4385E General Description

The MAX4385E/MAX4386E op amps are unity-gain stable devices that combine high-speed performance, Rail-to-Rail ® outputs, and ±15kV ESD protection. Targeted for applications where an input or an output is exposed to the outside world, such as video and communications, these devices are compliant with.

MAX4385E Datasheet (430.85 KB)

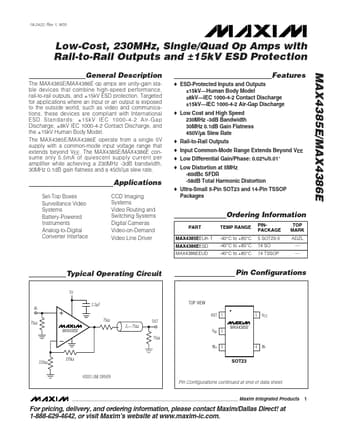

Preview of MAX4385E PDF

Datasheet Details

Part number:

MAX4385E

Manufacturer:

Maxim

File Size:

430.85 KB

Description:

Low-cost / 230mhz / single/quad op amps.
