MAX439, MAX402, Micropower Op Amps

19-3786; Rev 2; 10/94 High-Speed, Low-Voltage, Micropower Op Amps _______________General .
The MAX402/MAX403/MAX438/MAX439 micropower op amps combine high-speed performance with low-power operation.

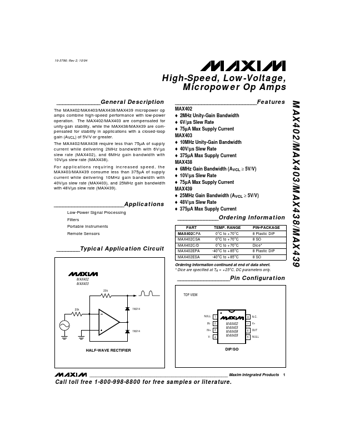

datasheet Preview Page 1 from Datasheet4u.com

MAX402-Maxim.pdf

MAX439 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX439, MAX402. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX439, MAX402

Manufacturer:

Maxim

File Size:

143.64 KB

Description:

Micropower Op Amps

Note:

This datasheet PDF includes multiple part numbers: MAX439, MAX402.
Please refer to the document for exact specifications by model.

Features

* MAX402 o 2MHz Unity-Gain Bandwidth o 6V/µs Slew Rate o 75µA Max Supply Current MAX403 o 10MHz Unity-Gain Bandwidth o 40V/µs Slew Rate o 375µA Max Supply Current MAX438 o 6MHz Gain Bandwidth (AVCL ≥ 5V/V) o 10V/µs Slew Rate o 75µA Max Supply Current MAX439 o 25MHz Gain Bandwidth (AVCL ≥ 5V/V) o 48V/µ

Applications

* with a closed-loop gain (AVCL) of 5V/V or greater. The MAX402/MAX438 require less than 75µA of supply current while delivering 2MHz bandwidth with 6V/µs slew rate (MAX402), and 6MHz gain bandwidth with 10V/µs slew rate (MAX438). For applications requiring increased speed, the MAX403/MAX439 consume l
