MAX445 - Low-Cost / High-Resolution / 200MHz Video CRT Driver

Name: MAX445
SKU: MAX445-498867

Maxim

📥 Download Datasheet

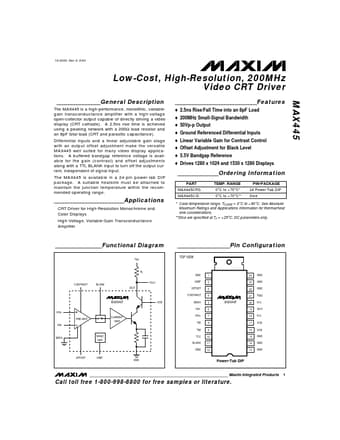

MAX445 Datasheet Preview — Preview of MAX445 PDF

Datasheet Details

Part number	MAX445
Manufacturer	Maxim
File Size	77.62 KB
Description	Low-Cost / High-Resolution / 200MHz Video CRT Driver
Datasheet	MAX445_MaximIntegratedProducts.pdf

MAX445 Product details

Description

The MAX445 is a high-performance, monolithic, variablegain transconductance amplifier with a high-voltage open-collector output capable of directly driving a video display (CRT cathode).

Features

o 2.5ns Rise/Fall Time into an 8pF Load o 200MHz Small-Signal Bandwidth o 50Vp-p Output o Ground Referenced Differential Inputs o Linear Variable Gain for Contrast Control o Offset Adjustment for Black Level o 5.5V Bandgap Reference o Drives 1280 x 1024 and 1530 x 1280 Displays MAX445 ______________Ordering Information PART MAX445CPG MAX445C/D TEMP. RANGE 0°C to +70°C.
0°C to +70°C.
PIN-.
