MAX4464 - Single/Dual/Quad / !.8V/750nA / SC70 / Rail-to-Rail Op Amps

MAX4464 Description

19-2021; Rev 2; 2/03 Single/Dual/Quad, +1.8V/750nA, SC70, Rail-to-Rail Op Amps MAX4464/MAX4470/MAX4471/MAX4472/MAX4474 General .
The MAX4464/MAX4470/MAX4471/MAX4472/MAX4474 family of micropower op amps operate from a single +1.

MAX4464 Features

* o Ultra-Low 750nA Supply Current Per Amplifier o Ultra-Low +1.8V Supply Voltage Operation o Ground-Sensing Input Common-Mode Range o Outputs Swing Rail-to-Rail o Outputs Source and Sink 11mA of Load Current o No Phase Reversal for Overdriven Inputs o High 120dB Open-Loop Voltage Gain o Low 500µV Inp

MAX4464 Applications

* Battery-Powered Systems Portable Instrumentation Pagers and Cellphones Micropower Thermostats Electrometer Amplifiers Solar-Powered Systems Remote Sensor Active Badges pH Meters PART MAX4464EXK-T MAX4464EUK-T MAX4470EXK-T MAX4470EUK-T MAX4471EKA-T Ordering Information TEMP. RANGE -40°C to +85°C -40

📥 Download Datasheet

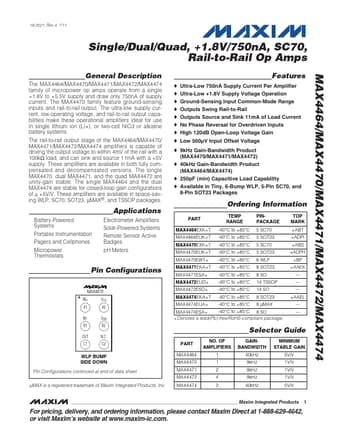

Preview of MAX4464 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4464
Manufacturer
Maxim
File Size
604.49 KB
Datasheet
MAX4464_MaximIntegratedProducts.pdf
Description
Single/Dual/Quad / !.8V/750nA / SC70 / Rail-to-Rail Op Amps
