MAX463 - Two-Channel / Triple/Quad RGB Video Switches and Buffers

Name: MAX463
SKU: MAX463-420798

Maxim

📥 Download Datasheet

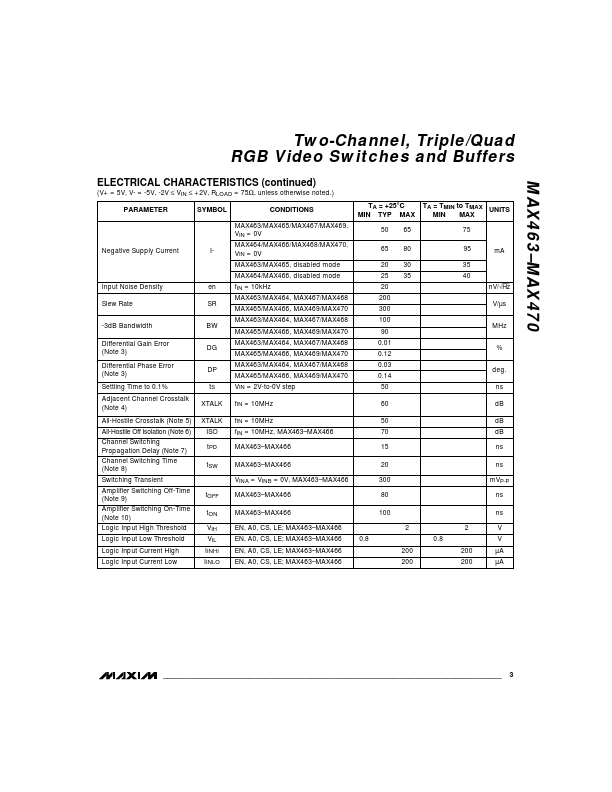

MAX463 Datasheet Preview — Preview of MAX463 PDF

Datasheet Details

Part number	MAX463
Manufacturer	Maxim
File Size	162.90 KB
Description	Two-Channel / Triple/Quad RGB Video Switches and Buffers
Datasheet	MAX463_MaximIntegratedProducts.pdf

MAX463 Product details

Description

The MAX463 MAX470 series of two-channel, triple/quad buffered video switches and video buffers combines high-accuracy, unity-gain-stable amplifiers with high-performance video switches.

Features

o o o o o 100MHz Unity-Gain Bandwidth 90MHz Bandwidth with 2V/V Gain 0.01%/0.03° Differential Gain/Phase Error Drives 50Ω and 75Ω Back-Terminated Cable Directly Wide Output Swing: ±2V into 75Ω ±2.5V into 150Ω 300V/µs Slew Rate (2V/V gain) 20ns Channel Switching Time Logic Disable Mode: High-Z Outputs Reduced Power Consumption Outputs May Be Paralleled for Larger Networks 5pF Input Capacitance (channel on or off) _______________General.
