MAX520 - Quad/Octal / 2-Wire Serial 8-Bit DACs

Name: MAX520
SKU: MAX520-421310

Maxim

📥 Download Datasheet

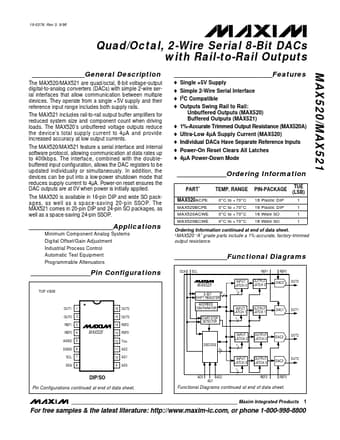

MAX520 Datasheet Preview — Preview of MAX520 PDF

Datasheet Details

Part number	MAX520
Manufacturer	Maxim
File Size	274.76 KB
Description	Quad/Octal / 2-Wire Serial 8-Bit DACs
Datasheet	MAX520_MaximIntegratedProducts.pdf

MAX520 Product details

Description

The MAX520/MAX521 are quad/octal, 8-bit voltage-output digital-to-analog converters (DACs) with simple 2-wire serial interfaces that allow communication between multiple devices.

Features

o o o o Single +5V Supply Simple 2-Wire Serial Interface I2C Compatible Outputs Swing Rail to Rail: Unbuffered Outputs (MAX520) Buffered Outputs (MAX521) 1%-Accurate Trimmed Output Resistance (MAX520A) Ultra-Low 4µA Supply Current (MAX520) Individual DACs Have Separate Reference Inputs Power-On Reset Clears All Latches 4µA Power-Down Mode MAX520/MAX521 o o o o o ______________Ordering Information PART † TEMP. RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C PIN-.
