MAX5524, MAX5522, Voltage-Output DACs

19-3064; Rev 1; 12/04 Dual, Ultra-Low-Power, 10-Bit, Voltage-Output DACs General .
The MAX5522. MAX5525 are dual, 10-bit, ultra-lowpower, voltage-output, digital-to-analog converters (DACs) offering rail-to-rail buffered volta.

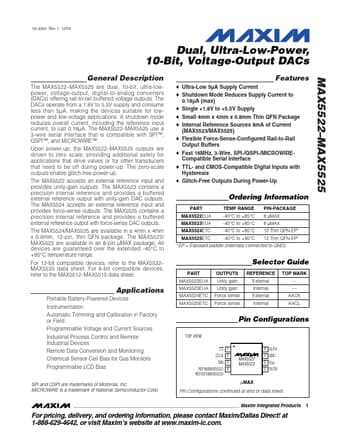

datasheet Preview Page 1 from Datasheet4u.com

MAX5522-Maxim.pdf

MAX5524 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX5524, MAX5522. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX5524, MAX5522

Manufacturer:

Maxim

File Size:

1.12 MB

Description:

Voltage-Output DACs

Note:

This datasheet PDF includes multiple part numbers: MAX5524, MAX5522.
Please refer to the document for exact specifications by model.

Features

* MAX5522
* MAX5525 Ordering Information PART MAX5522EUA MAX5523EUA MAX5524ETC MAX5525ETC TEMP RANGE -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C PIN-PACKAGE 8 µMAX 8 µMAX 12 Thin QFN-EP
* 12 Thin QFN-EP
* EP = Exposed paddle (internally connected to GND). Selector

Applications

* A shutdown mode reduces overall current, including the reference input current, to just 0.18µA. The MAX5522
* MAX5525 use a 3-wire serial interface that is compatible with SPI™, QSPI™, and MICROWIRE™. Upon power-up, the MAX5522
* MAX5525 outputs are driven to zero scale, providing addit
