Description

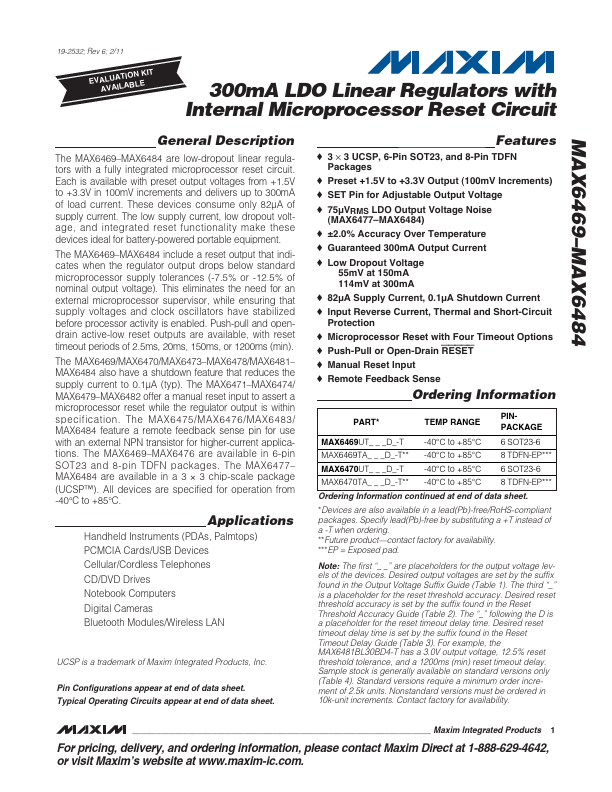

19-2532; Rev 2; 6/03 KIT ATION EVALU E L B A AVAIL 300mA LDO Linear Regulators with Internal Microprocessor Reset Circuit General .
Features o 3 ✕ 3 UCSP, 6-Pin SOT23, and 8-Pin QFN Packages o Preset +1.

📥 Download Datasheet

MAX6475 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX6475, MAX. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MAX6475, MAX
Manufacturer: Maxim
File Size: 394.30 KB
Datasheet: MAX-6469.pdf
Description: 300mA LDO Linear Regulators
Note: This datasheet PDF includes multiple part numbers: MAX6475, MAX.
Please refer to the document for exact specifications by model.

Features

* o 3 ✕ 3 UCSP, 6-Pin SOT23, and 8-Pin QFN Packages o Preset +1.5V to +3.3V Output (100mV Increments) o SET Pin for Adjustable Output Voltage o 75µVRMS LDO Output Voltage Noise (MAX6477
* MAX6484) o ±2.0% Accuracy Over Temperature o Guaranteed 300mA Output Current o Low Dropout Voltage 55mV at 1

Applications

* The MAX6469
* MAX6476 are available in 6-pin SOT23 and 8-pin thin QFN packages. The MAX6477
* MAX6484 are available in a 3 × 3 chip-scale package (UCSP™). All devices are specified for operation from -40°C to +85°C. Ordering Information PART MAX6469UT_ _ _D_-T MAX6469TA_ _ _D_
* MA
