MAX6711L - 4-Pin SC70 Microprocessor Reset Circuits

MAX6711L Description

19-1623; Rev 0; 1/00 4-Pin SC70 Microprocessor Reset Circuits with Manual Reset Input General .
The MAX6711/MAX6712/MAX6713 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems.

MAX6711L Features

* o Precision Monitoring of 2.5V, 3.0V, 3.3V, and 5.0V Power-Supply Voltages o Fully Specified Over Temperature o Available in Three Output Configurations Push-Pull RESET Output (MAX6711) Push-Pull RESET Output (MAX6712) Open-Drain RESET Output (MAX6713) o 140ms min Power-On Reset Pulse Width o Manual

MAX6711L Applications

* Computers Controllers Intelligent Instruments Critical µP and µC Power Monitoring Portable/Battery-Powered Equipment Automotive Typical Operating Circuit VCC VCC RPULL-UP
* VCC Pin Configuration TOP VIEW GND 1 4 VCC MAX6711 MAX6713 PUSHBUTTON MR SWITCH GND RESET RESET INPUT µP MAX6711 MAX671

📥 Download Datasheet

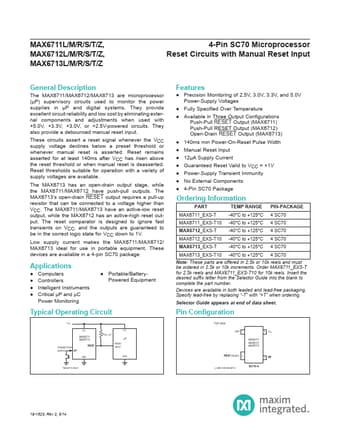

Preview of MAX6711L PDF
