MAX9077 Low-Cost / Ultra-Small / 3A Single-Supply Comparators

Maxim

Description

MAX9075/MAX9077 Low-Cost, Ultra-Small, 3µA Single-Supply Comparators General .
The MAX9075/MAX9077 single/dual comparators are optimized for 3V and 5V single-supply applications.

📥 Download Datasheet

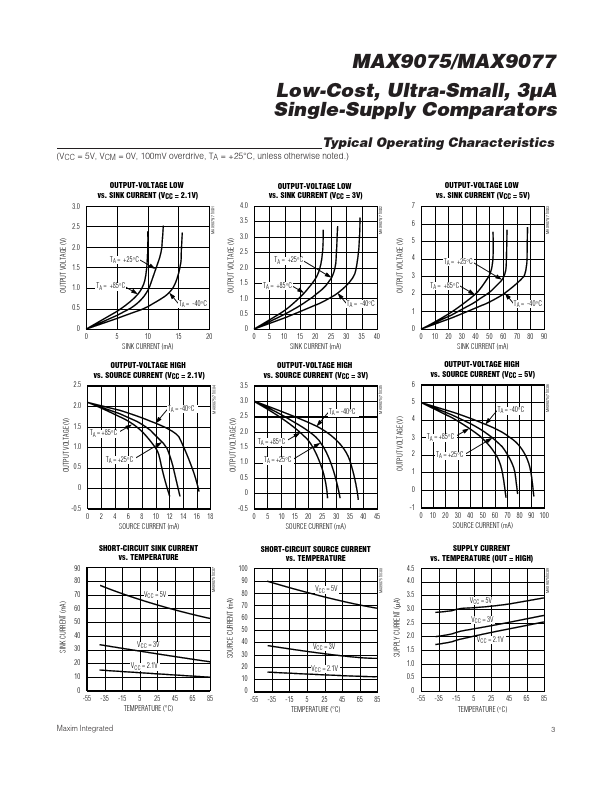

MAX9077 Datasheet Preview — Preview of MAX9077 PDF

Datasheet Specifications

Part number: MAX9077
Manufacturer: Maxim
File Size: 123.15 KB
Datasheet: MAX9077_MaximIntegratedProducts.pdf
Description: Low-Cost / Ultra-Small / 3A Single-Supply Comparators

Features

* o 580ns Propagation Delay from Only 3µA o 2.1V to 5.5V Single-Supply Operation o Ground-Sensing Inputs o Rail-to-Rail Outputs o No Output Phase Inversion for Overdriven Inputs o No Differential Clamp Across Inputs o Available in Ultra-Small Packages 5-Pin SC70 (MAX9075) 8-Pin SOT23 (MAX9077) Orderi

Applications

* These comparators have a 580ns propagation delay and consume just 3µA per comparator. The combination of low-power, single-supply operation down to 2.1V, and ultra-small footprint makes these devices ideal for all portable applications. The MAX9075/MAX9077 have a common-mode input voltage range of
