MAX923 - Ultra Low-Power / Single/Dual-Supply Comparators

MAX923 Description

Click here for production status of specific part numbers.MAX921 *MAX924 Ultra Low-Power, Single/Dual-Supply Comparators General .
The MAX921. MAX924 single, dual, and quad micro-power, low-voltage comparators feature the lowest power consumption available.

MAX923 Features

* μMAX® Package
* Smallest 8-Pin SO (MAX921/MAX922/MAX923)
* Ultra-Low 4μA Max Quiescent Current Over Extended Temp. Range (MAX921)
* Power Supplies:
* Single +2.5V to +11V
* Dual ±1.25V to ±5.5V
* Input Voltage Range Includes Negative Supp

MAX923 Applications

* the MAX921
* MAX924 operate from a single +2.5V to +11V supply (or a ±1.25V to ±5V dual supply), and each comparator’s input voltage range swings from the negative supply rail to within 1.3V of the positive supply. The MAX921
* MAX924’s unique output stage continuously sources as much

📥 Download Datasheet

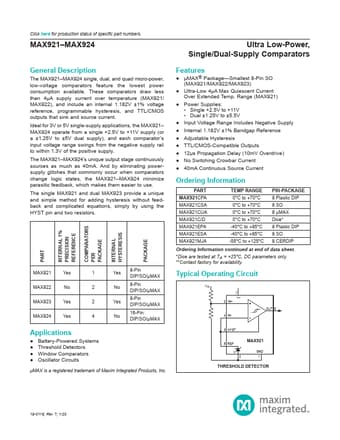

Preview of MAX923 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX923
Manufacturer
Maxim
File Size
1.00 MB
Datasheet
MAX923_MaximIntegratedProducts.pdf
Description
Ultra Low-Power / Single/Dual-Supply Comparators
