MAX952 - Single-Supply Op Amp + Comparator + Reference

MAX952 Description

MAX951 *MAX954 Ultra-Low-Power, Single-Supply Op Amp + Comparator + Reference General .
The MAX951. MAX954 feature combinations of a micropower operational amplifier, comparator, and reference in an 8-pin package.

MAX952 Features

* Op Amp + Comparator + Reference in an 8-Pin μMAX Package (MAX951/MAX952)
* 7μA Typical Supply Current (Op Amp + Comparator + Reference)
* Comparator and Op Amp Input Range Includes Ground
* Outputs Swing Rail to Rail
* 2.4V to 7V Supply Voltage Range

MAX952 Applications

* Instruments, Terminals, and Bar-Code Readers
* Battery-Powered Systems
* Low-Frequency, Local-Area Alarms/Detectors
* Photodiode Preamps
* Smart Cards
* Infrared Receivers for Remote Controls
* Smoke Detectors and Safety Sensors Featu

📥 Download Datasheet

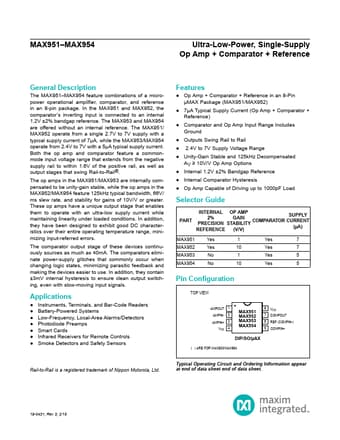

Preview of MAX952 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX952
Manufacturer
Maxim
File Size
568.73 KB
Datasheet
MAX952_MaximIntegratedProducts.pdf
Description
Single-Supply Op Amp + Comparator + Reference
