max538, +5V / Low-Power / Voltage-Output / Serial 12-Bit DACs

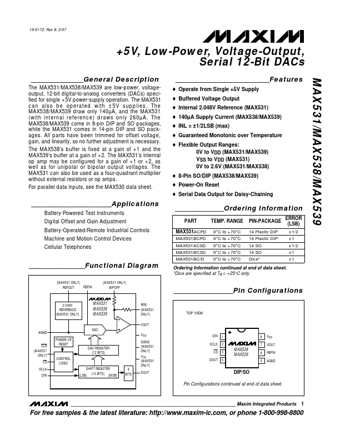

19-0172; Rev 6; 2/97 +5V, Low-Power, Voltage-Output, Serial 12-Bit DACs _______________General .
The MAX531/MAX538/MAX539 are low-power, voltageoutput, 12-bit digital-to-analog converters (DACs) specified for single +5V power-supply operation.

max538_MaximIntegratedProducts.pdf

max538 Datasheet Preview — Preview of max538 PDF

Datasheet Details

Part number:

max538

Manufacturer:

Maxim

File Size:

207.70 KB

Description:

+5V / Low-Power / Voltage-Output / Serial 12-Bit DACs

Features

* o Operate from Single +5V Supply o Buffered Voltage Output o Internal 2.048V Reference (MAX531) o 140µA Supply Current (MAX538/MAX539) o INL = ±1/2LSB (max) o Guaranteed Monotonic over Temperature o Flexible Output Ranges: 0V to VDD (MAX531/MAX539) VSS to VDD (MAX531) 0V to 2.6V (MAX531/MAX538) o 8-

Applications

* Battery-Powered Test Instruments Digital Offset and Gain Adjustment Battery-Operated/Remote Industrial Controls Machine and Motion Control Devices Cellular Telephones ______________Ordering Information PART MAX531ACPD MAX531BCPD MAX531ACSD MAX531BCSD MAX531BC/D TEMP. RANGE 0°C to +70°C 0°C to +70°C
