MT6305B Datasheet - MediaTek

GSM Power Management System

MT6305B Features

* including current limiting, under voltage lock-out protection, deep discharge lockout protection and over temperature protection. MT6305BN/CY is offered in 48-pin QFN package. The tiny size and low profile reduce the required board area and increase the power density of the whole power system design

MT6305B General Description

Use pin#3 (original NC pin) to program Provide alternative VCORE/VRTC. VCORE/VRTC=1.8V/1.5V VCORE/VRTC voltas pin#3 is floating. age. VCORE/VRTC=1.2V/1.2V as pin#3 is GND. CHRIN can be up to 15V but the charger will be off automatically when CHRIN>Vac_limit. The spec. of Vac_limit is 8~9.5V. It can.

MT6305B Datasheet (694.56 KB)

MT6305B Datasheet Preview — Preview of MT6305B PDF

Datasheet Details

Part number:

MT6305B

Manufacturer:

MediaTek

File Size:

694.56 KB

Description:

Gsm power management system.

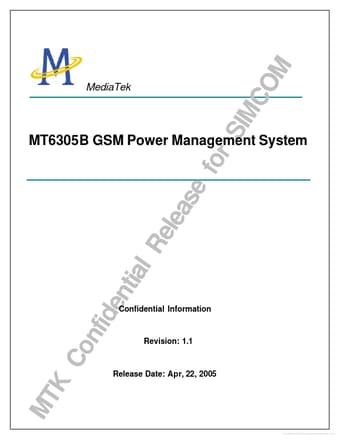

MediaTek MT6305B GSM Power Management System MT K Co nfi de nti al Re lea se Revision: 1.1 Confidential Information Release Date: Apr, 22, 2005 .
