* DisplayPort® (DP) ver. 1.2a receiver
* Link rate HBR2/HBR/RBR
* 1, 2, or 4 lanes configuration
* AUX CH 1 Mbps, HPD out
* Supports eDP ASSR scrambler operation
* HDMI ver. 2.0 transmitter
* Max data rate up to 6.0 Gbps/ch
* Deep color
MCDP2800 Datasheet (651.03 KB)
MCDP2800
MegaChips
651.03 KB
Displayport1.2a to hdmi2.0 level shifter/protocol converter.

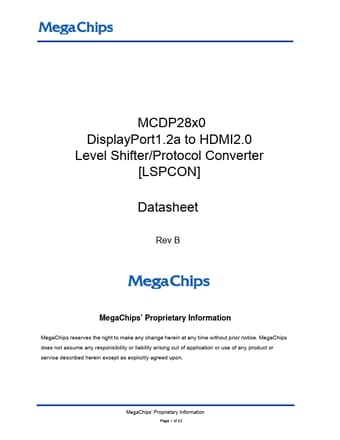

MCDP28x0 DisplayPort1.2a to HDMI2.0 Level Shifter/Protocol Converter
[LSPCON] Datasheet
Rev B
MegaChips’ Proprietary Information
MegaChips reserves th.
📁 Related Datasheet
MCDP2850 - DisplayPort1.2a to HDMI2.0 Level Shifter/Protocol Converter
(MegaChips)
MCDP28x0 DisplayPort1.2a to HDMI2.0 Level Shifter/Protocol Converter
[LSPCON] Datasheet
Rev B
MegaChips’ Proprietary Information
MegaChips reserves th.
MCDP2900 - DisplayPort1.4 to HDMI2.0a protocol converter
(MegaChips)
MCDP2900 DisplayPort1.4 to HDMI2.0a protocol
converter with HDCP2.2 repeater
Datasheet
Rev. D
MegaChips’ Proprietary and Confidential
This information.
