HI1240-1R5M - SMD High Current Power Inductor

This page provides the datasheet information for the HI1240-1R5M, a member of the HI1240-R22M SMD High Current Power Inductor family.

Datasheet Summary

Features

  • General Specifications.
  • Shielded Construction.
  • Core Material: Metal alloy powder.
  • Low core loss.
  • Ultra low buzz noise.
  • RoHS, Halogen Free and REACH compliance.
  • Storage temp range: -55°C to +125°C.
  • Operating temp range: -55°C to +125°C.
  • Moisture Sensitivity Level(MSL): 1 Note.
  • HI1240-R22M/R47M Dimensions D:3.85±0.5.
  • HI1240-R68M~220M Dimensions D:5.0±0.3 Shape and Dimensions (Unit:mm) A E Recommended Layout 14.5 B 1R0 D C 5.5 8 Type.

📥 Download Datasheet

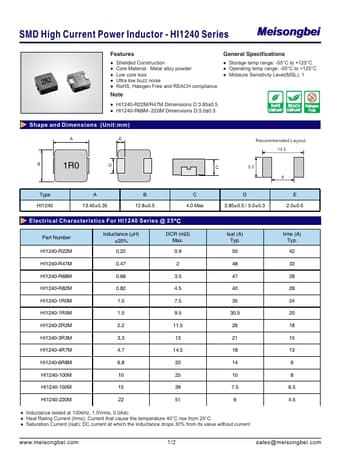

Datasheet preview – HI1240-1R5M

Datasheet Details

Part number HI1240-1R5M
Manufacturer Meisongbei
File Size 491.32 KB
Description SMD High Current Power Inductor
Datasheet download datasheet HI1240-1R5M Datasheet
Additional preview pages of the HI1240-1R5M datasheet.

📁 Similar Datasheet

  • Hi1240 - External MOS single-channel LED constant current driver (HiChips)
  • Hi12410 - Series low-voltage differential single-path LED constant current driver (HiChips)
  • Hi1243 - Series low-voltage differential single-path LED constant current driver (HiChips)
  • Hi1243E - low-voltage differential single-path LED constant current driver (HiChips)
  • Hi1244 - Series low-voltage differential single-path LED constant current driver (HiChips)
  • Hi1244E - low-voltage differential single-path LED constant current driver (HiChips)
  • Hi1246 - Series low-voltage differential single-path LED constant current driver (HiChips)
  • Hi1246E - low-voltage differential single-path LED constant current driver (HiChips)
  • HI1206N101R-10 - Ferrite EMI Chip Beads (Laird)
  • HI1206N800R-10 - Ferrite EMI Chip Beads (Laird)
Other Datasheets by Meisongbei

Full PDF Text Transcription

Click to expand full text
SMD High Current Power Inductor - HI1240 Series Meisongbei Features General Specifications ● Shielded Construction ● Core Material: Metal alloy powder ● Low core loss ● Ultra low buzz noise ● RoHS, Halogen Free and REACH compliance ● Storage temp range: -55°C to +125°C ● Operating temp range: -55°C to +125°C ● Moisture Sensitivity Level(MSL): 1 Note ● HI1240-R22M/R47M Dimensions D:3.85±0.5 ● HI1240-R68M~220M Dimensions D:5.0±0.3 Shape and Dimensions (Unit:mm) A E Recommended Layout 14.5 B 1R0 D C 5.5 8 Type HI1240 A 13.45±0.35 B 12.8±0.5 C 4.0 Max D 3.85±0.5 / 5.0±0.3 Electrical Characteristics For HI1240 Series @ 25°C Part Number HI1240-R22M Inductance (μH) ±20% 0.22 DCR (mΩ) Max. 0.9 Isat (A) Typ. 50 HI1240-R47M 0.47 2 48 HI1240-R68M 0.68 3.
