MLX90217 - Hall-Effect Cam Sensor

Datasheet Summary

Description

The MLX90217 is a self adjusting digital output rotary position gear tooth sensor designed for use in automotive camshaft sensing as well as other speed sensing applications.

It is designed to be used with a bias magnet south facing the back (non-marked) side of the IC.

Features

  • s s s s s s s s Rotary Position Gear Tooth Sensor Short Circuit Protection On-chip 10 bit A/D Converter Self-Adjusting Magnetic Range High Speed Operation No Chopper Delay Zero Speed Detection No Rotary Orientation Concerns.

📥 Download Datasheet

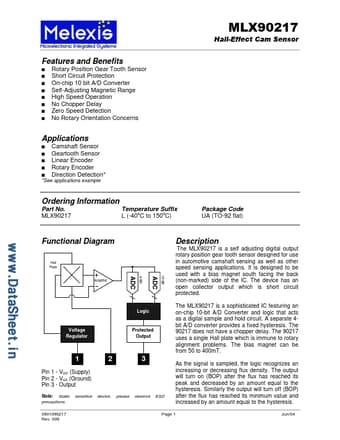

Datasheet preview – MLX90217

Datasheet Details

Part number MLX90217
Manufacturer Melexis Microelectronic Systems
File Size 183.03 KB
Description Hall-Effect Cam Sensor
Datasheet download datasheet MLX90217 Datasheet
Additional preview pages of the MLX90217 datasheet.

📁 Similar Datasheet

  • MLX90210 - Pressure Sensor IC (Melexis)
  • MLX90215 - Precision Programmable Linear Hall Effect Sensor (Melexis)
  • MLX90224 - Dual Hall Effect Switch (Melexis)
  • MLX90240 - Pressure Sensor IC (Melexis)
  • MLX90247 - Discrete Infrared Thermopile Detectors (Melexis)
  • MLX90247B - Thermopile w/On-Chip Thermistor (Melexis)
  • MLX90247C - Thermopile w/NTC Thermistor (Melexis)
  • MLX90251 - Programmable Linear Hall Effect Sensor (Melexis)
  • MLX90254 - Differential Dynamic Hall Effect Sensor (Melexis)
  • MLX90255-BA - Linear Optical Array (Melexis)
Other Datasheets by Melexis Microelectronic Systems

Full PDF Text Transcription

Click to expand full text
MLX90217 Hall-Effect Cam Sensor Features and Benefits s s s s s s s s Rotary Position Gear Tooth Sensor Short Circuit Protection On-chip 10 bit A/D Converter Self-Adjusting Magnetic Range High Speed Operation No Chopper Delay Zero Speed Detection No Rotary Orientation Concerns Applications s s s s s Camshaft Sensor Geartooth Sensor Linear Encoder Rotary Encoder Direction Detection* *See applications example Ordering Information Part No. MLX90217 Temperature Suffix L (-40oC to 150oC) Package Code UA (TO-92 flat) Functional Diagram Hall Plate 10-Bit Description The MLX90217 is a self adjusting digital output rotary position gear tooth sensor designed for use in automotive camshaft sensing as well as other speed sensing applications.
