TH72001 - 315MHz FSK Transmitter

Melexis

📥 Download Datasheet

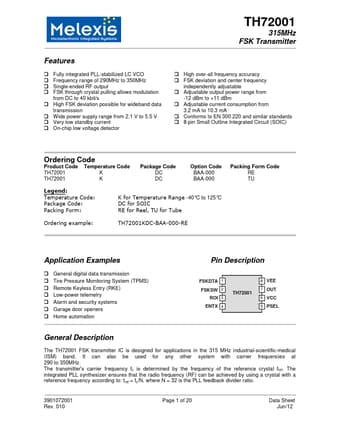

TH72001 Datasheet Preview — Preview of TH72001 PDF

Datasheet Details

Part number	TH72001
Manufacturer	Melexis
File Size	691.55 KB
Description	315MHz FSK Transmitter
Datasheet	TH72001-Melexis.pdf

TH72001 Product details

Description

FSKDTA 1 FSKSW 2 ROI 3 ENTX 4 TH72001 8 VEE 7 OUT 6 VCC 5 PSEL General Description The TH72001 FSK transmitter IC is designed for applications in the 315 MHz industrial-scientific-medical (ISM) band.It can also be used for any other system with carrier frequencies at 290 to 350MHz.The transmitter's carrier frequency fc is determined by the frequency of the reference crystal fref.The integrated PLL synthesizer ensures that the radio frequency (RF) can be achieved by using a crystal with a ref

Features

Fully integrated PLL-stabilized LC VCO Frequency range of 290MHz to 350MHz Single-ended RF output FSK through crystal pulling allows modulation from DC to 40 kbit/s High FSK deviation possible for wideband data transmission Wide power supply range from 2.1 V to 5.5 V Very low standby current On-chip low voltage detector High over-all frequency accuracy FSK deviation and center frequency independently adjustable Adjustable output power range from -12 dBm to +11 dBm Adjustable current consumption.
