GS1G, GS1A Silicon Rectifier

GS1G Description

Silicon Rectifier GS1A-GS1M 1A 50~1KV DO-214AC (SMA) .

GS1G Features

* Peak Surge Overload Rating: 30A
* Low profile package
* Low forward voltage drop
* Glass passivated Die construction
* Terminals: Solder plated, solderable per MIL-STD-750
* UL Flammability Classification 94V-O ELECTRICAL CHARACTERISTICS Parameter Symbol GS1A GS1B GS1D G

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS1G, GS1A. Please refer to the document for exact specifications by model.

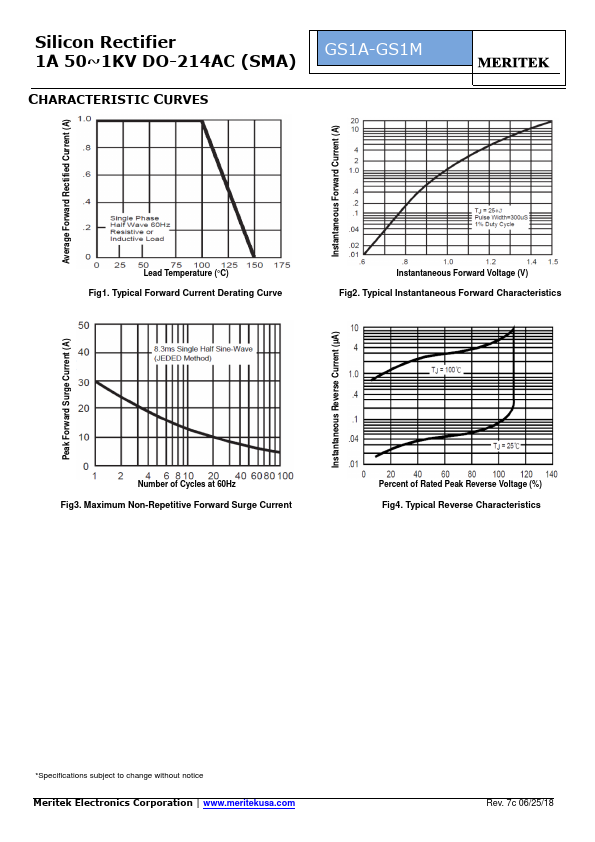

datasheet Preview Page 2

Datasheet Details

Part number
GS1G, GS1A
Manufacturer
Meritek
File Size
787.35 KB
Datasheet
GS1A-Meritek.pdf
Description
Silicon Rectifier
Note
This datasheet PDF includes multiple part numbers: GS1G, GS1A.
Please refer to the document for exact specifications by model.
