PCF-3F PHASE COMPARATORS

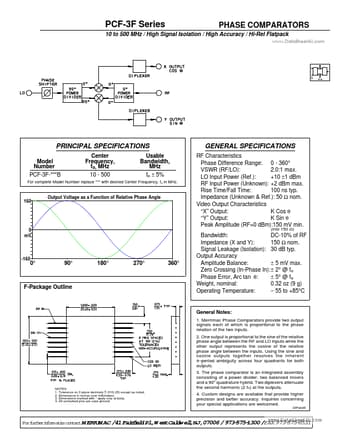

PCF-3F Series PHASE COMPARATORS www.DataSheet4U.com 10 to 500 MHz / High Signal Isolation / High Accuracy / Hi-Rel Flatpack PRINCIPAL SPECIFICATIONS Model Number PCF-3F- B Center Frequency, fo, MHz 10 - 500 Usable Bandwidth, MHz fo ± 5% GENERAL SPECIFICATIONS RF Characteristics Phase Difference Range: 0 - 360° VSWR (RF/LO): 2.0:1 max. LO Input Power (Ref.): +10 ±1 dBm RF Input Power (Unknown): +2 dBm max. Rise Time/Fall Time: 100 ns typ. Impedance (Unknown & Ref.): 50 Ω nom. Vi.

PCF-3F_MerrimacIndustries.pdf

Preview of PCF-3F PDF

Datasheet Details

Part number:

PCF-3F

Manufacturer:

Merrimac Industries

File Size:

93.86 KB

Description:

Phase comparators.
