PDF-2A-50 - Dividers/Combiners

PDF-2A-50 Description

Crane Aerospace & Electronics Microwave Solutions 0° Dividers/Combiners - PDF-2A-50 SQ Technical .

PDF-2A-50 Features

* Space Qualified
* 1 - 100 MHz
* 2 Way Flatpack PERFORMANCE Frequency Range1 - 100 MHz Isolation 30 min. , 35 typ. dB Insertion Loss 0.7 max. , 0.5 typ. dB Amplitude Balance 0.15 max. , 0.1 typ. dB Phase Balance2° max. , 1° typ. VSWR Input/Output1.3:1 max. , 1.2:1 typ. Input

📥 Download Datasheet

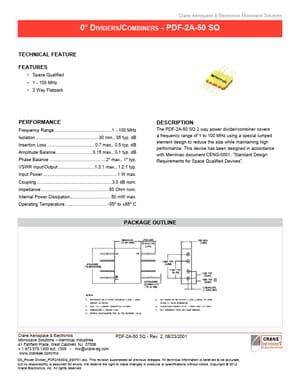

Preview of PDF-2A-50 PDF

Datasheet Details

Part number
PDF-2A-50
Manufacturer
Merrimac
File Size
134.30 KB
Datasheet
PDF-2A-50-Merrimac.pdf
Description
Dividers/Combiners
