IC5205BM5

MIC5205BM5

IC5205BM5 Features

* include a reference bypass pin to improve its already excellent low-noise performance, reversed-battery protection, current limiting, and overtemperature shutdown. The MIC5205 is available in fixed and adjustable output voltage versions in a small SOT-23-5 package. Features

IC5205BM5 General Description

The MIC5205 is an efficient linear voltage regulator with ultralow-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (600µA at 100mA output). The MIC5205 offers better than 1% initial accuracy. Designed especially for hand-held, ba.

IC5205BM5 Datasheet (135.95 KB)

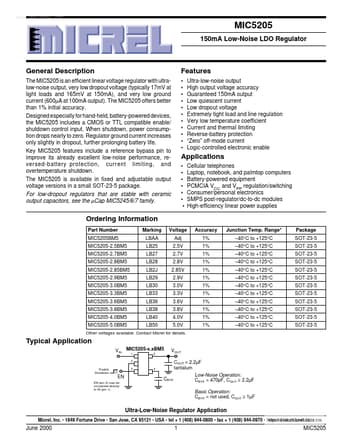

Preview of IC5205BM5 PDF

Datasheet Details

Part number:

IC5205BM5

Manufacturer:

Micrel Semiconductor

File Size:

135.95 KB

Description:

Mic5205bm5.
