KSZ8021RNL 10Base-T/100Base-TX PHY

KSZ8021RNL Description

KSZ8021RNL / KSZ8031RNL 10Base-T/100Base-TX PHY with RMII Support General .
Features The KSZ8031RNL is a single-supply 10Base-T/100BaseTX Ethernet physical layer transceiver for transmission and reception of data over standa.

KSZ8021RNL Features

* The KSZ8031RNL is a single-supply 10Base-T/100BaseTX Ethernet physical layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ8031RNL is a highly-integrated, compact solution. It reduces board cost and simplifies board layout by usin

KSZ8021RNL Applications

* Game Console
* IP Phone
* IP Set-top Box
* IP TV
* LOM
* Printer KSZ8021RNL / KSZ8031RNL Ordering Information Part Number Temperature Range KSZ8021RNL 0°C to 70°C KSZ8021RNLI (1)
* 40°C to 85°C KSZ8031RNL 0°C to 70°C KSZ8031RNLI (1)

📥 Download Datasheet

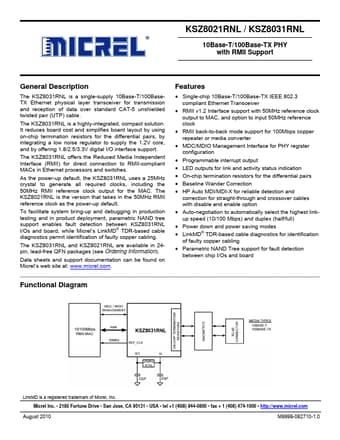

Preview of KSZ8021RNL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSZ8021RNL
Manufacturer
Micrel Semiconductor
File Size
567.58 KB
Datasheet
KSZ8021RNL-MicrelSemiconductor.pdf
Description
10Base-T/100Base-TX PHY
